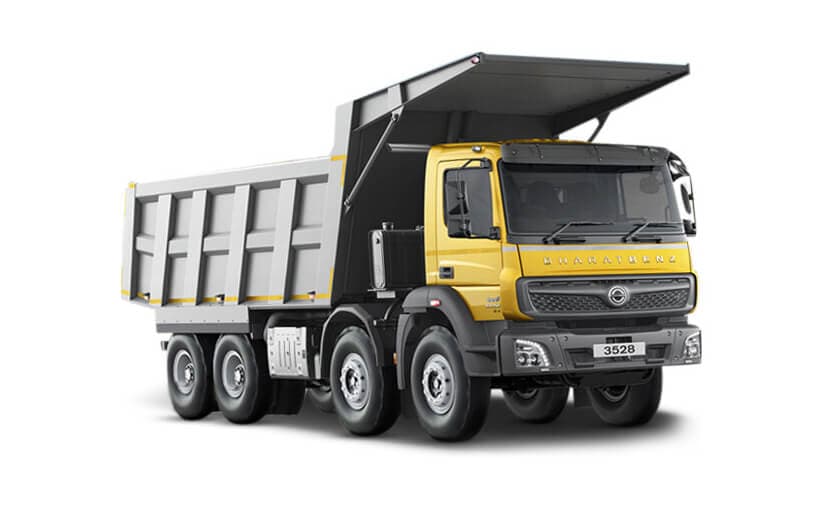

3528CM
BharatBenz Tippers
The BharatBenz 3528CM is engineered to deliver superior performance and durability, making it an ideal choice for heavy-duty transport operations that require exceptional power and efficiency.
- Gearbox Model & Type: G 131, 9F + 1R, Mechanical, Synchromesh Gears
- Clutch Type: Single Dry Plate, Hydraulic Control
- Clutch Diameter(mm): 430, 4.5 mm
- Front Axle Model, Type: IF 7.5
- Rear Axle Model, Type: RA1: MT 36 610, RA2: MT 36 610 Hub Reduction
- Rear Axle Ratio*: 6.18
- Wheel Base(mm)5175
- Cabin:Day
- Loading Span(ft)/Loadbody cpc (Cu.m):18 Cu.m Scoop; 23 Cu.m Box
- Overall Length(mm):8085
- Overall Width(mm):2490
- Overall Height(mm):2962
- Front Overhang(mm):1485
- Rear Overhang(mm):750
- Minimum Ground Clearance(mm):359
- Gross Vehicle Weight: 35,000 kgs (Mining Tyre)
- Frame Section (DxWxT) (mm): 288 x 70 x 9
- Front Suspension: Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
- Rear Suspension: Bogie Suspension
- Anti Roll Bar: Front: Standard; Rear: Standard(RA2)
- Service Brake: Pneumatic Foot Operated, Dual Line with ABS
- Parking Brake: Pneumatically Operated Hand Control Valve
- Front Axle Brake: Ø 410 drum
- Rear Axle Brake: Ø 410 drum
- Tyre Size: Mining Tyre (12x20 mine)
- Steering Type: Hydraulic Power Assisted
- Cabin: Day Cabin, Tiltable
- Fuel Tank/Filling Capacity*: 215L/200L
- Adblue Tank/Filling Capacity: 43L/36L
- Voltage: 24V
- Battery Capacity: 120Ah
- Maximum Gradeability %: 51.4%
- Maximum Geared Speed: 60 kmph
- Turning Circle Diameter(TCD)*: 23.1m
Model
OM 926
Maximum Power, KW
210 Kw @ 2200 rpm
Maximum Torque
1100 Nm @ 1200 - 1600 rpm
No. of Cylinders, Displacement
6, 7200 cc
