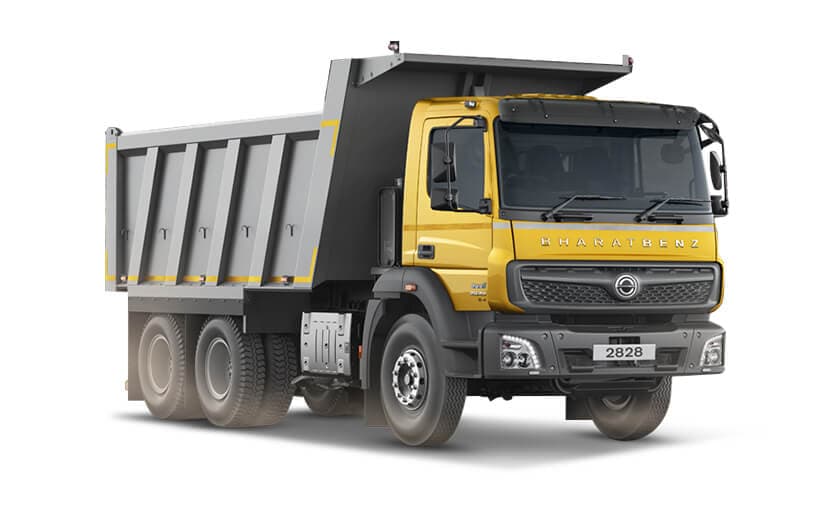

2828C
BharatBenz Tippers
The BharatBenz 2828C combines power and versatility to deliver exceptional performance in medium to heavy-duty applications, ensuring reliable transportation solutions for various industries.
- Gearbox Model & Type: G 131, 9F + 1R, Mechanical, Synchromesh Gears
- Clutch Type: Single Dry Plate, Hydraulic Control
- Clutch Diameter(mm): 395, 3.5 mm
- Front Axle Model, Type: IF 7.0
- Rear Axle Model, Type: RA1: IRT 390-11 | RA2: IRT 390-11
- Rear Axle Ratio*: 5.375
- Wheel Base(mm)42754875
- Cabin:Day with Foldable Berth
- Loading Span(ft)/Loadbody cpc (Cu.m):14 Cu.m Scoop; 16 Cu.m Box22 Cu.m Box
- Overall Length(mm):7185/7485 (RMC)7795
- Overall Width(mm):24902490
- Overall Height(mm):29552955
- Front Overhang(mm):14851485
- Rear Overhang(mm):750/1050 (RMC)750
- Minimum Ground Clearance(mm):282282
- Gross Vehicle Weight: 28,000 kgs (Nylon Tyre) 27,600 kgs (Mining Tyre)
- Frame Section (DxWxT) (mm): 288 x 70 x 9
- Front Suspension: Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
- Rear Suspension: Bogie Suspension
- Anti Roll Bar: Front: Standard; Rear: Standard (RA2)
- Service Brake: Pneumatic Foot Operated, Dual Line with ABS
- Parking Brake: Pneumatically Operated Hand Control Valve
- Front Axle Brake: Ø 410 drum
- Rear Axle Brake: Ø 410 drum
- Tyre Size: Nylon Tyre (11X20) Mining Tyre (11X20 mine)
- Steering Type: Hydraulic Power Assisted
- Cabin: Day Cabin, Tiltable
- Fuel Tank/Filling Capacity*: 215L/200L, 215L/200L
- Adblue Tank/Filling Capacity: 43L/36L
- Voltage: 24 V Electrical System
- Battery Capacity: 120Ah
- Maximum Gradeability %: 53%
- Maximum Geared Speed: 60 kmph
- Turning Circle Diameter(TCD)*: 15.5m, 19m
Model
OM926
Maximum Power
210 Kw @ 2200 rpm
Maximum Torque
1100 Nm @ 1200 - 1600 rpm
No. of Cylinders, Displacement(CC)
6, 7200 cc
