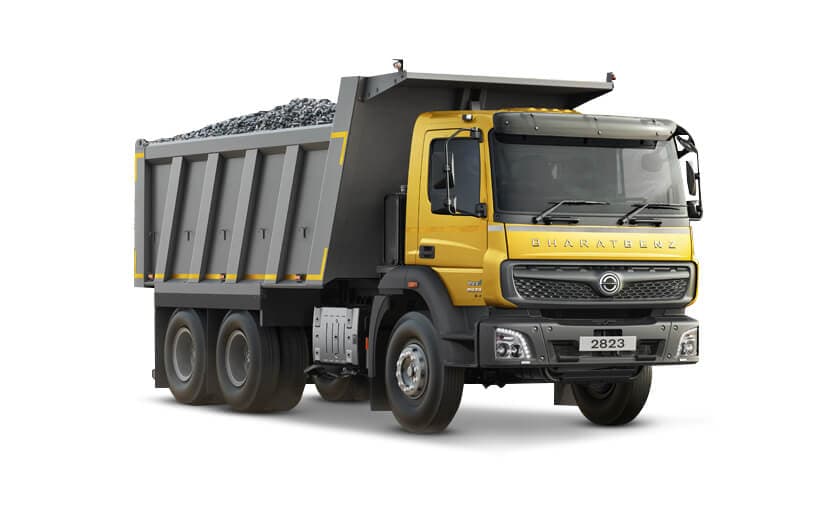

2823C
BharatBenz Tippers
With a focus on performance and durability, the BharatBenz 2823C offers excellent power and torque, making it suitable for a wide range of demanding transport operations.
- Gearbox Model & Type: G 131, 9F + 1R, Mechanical, Synchromesh Gears
- Clutch Type: Single Dry Plate, Hydraulic Control
- Clutch Diameter(mm): 395, 3.5 mm
- Front Axle Model, Type: IF 7.0
- Rear Axle Model, Type: RA1: IRT 390-11, RA2: IRT 390-11
- Rear Axle Ratio*: 5.375
- Wheel Base(mm)4275
- Cabin:Day with Foldable Berth
- Loading Span(ft)/Loadbody cpc (Cu.m):16 Cu.m Box
- Overall Length(mm):7185/7485 (RMC)
- Overall Width(mm):2490
- Overall Height(mm):2955
- Front Overhang(mm):1485
- Rear Overhang(mm):750/1050 (RMC)
- Minimum Ground Clearance(mm):290
- Gross Vehicle Weight: 28,000 kgs (Radial Tyre/Nylon Tyre) 27,600 kgs (Mining Tyre)
- Frame Section (DxWxT) (mm): 288 x 70 x 9
- Front Suspension: Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
- Rear Suspension: Bogie Suspension
- Anti Roll Bar: Front: Standard; Rear: Standard(RA2)
- Service Brake: Pneumatic Foot Operated, Dual Line with ABS
- Parking Brake: Pneumatically Operated Hand Control Valve
- Front Axle Brake: Ø 410 drum
- Rear Axle Brake: Ø 410 drum
- Tyre Size: Radial Tyres (11R20), Nylon Tyre (11x20), Mining Tyre (11 x 20 mine)
- Steering Type: Hydraulic Power Assisted
- Cabin: Day Cabin, Tiltable
- Fuel Tank/Filling Capacity*: 215L/200L
- Adblue Tank/Filling Capacity: 43L/36L
- Voltage: 24V
- Battery Capacity: 120Ah (Std)/130Ah (For HAP)
- Maximum Gradeability %: 43.3%
- Maximum Geared Speed: 60 kmph
- Turning Circle Diameter(TCD)*: 15.5m
Model
OM 926
Maximum Power, KW
180
Maximum Torque, Nm
850
No. of Cylinders, Displacement(CC)
6, 7200 cc
