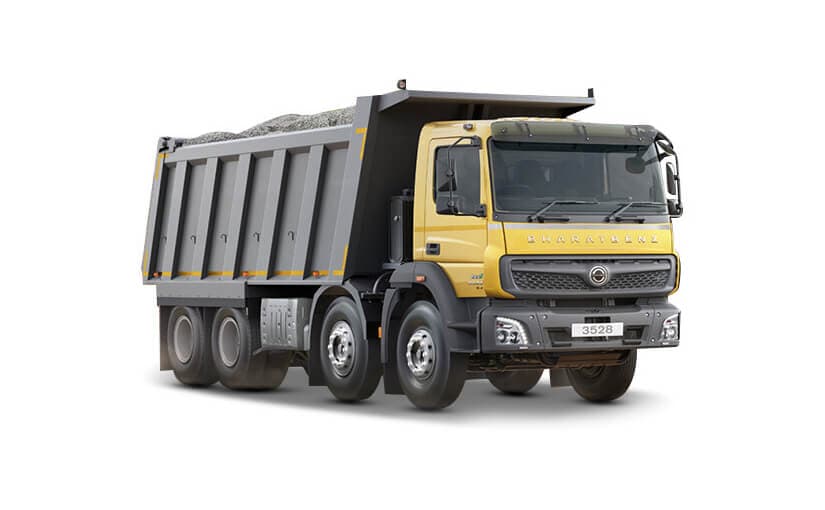

3528C

BharatBenz Tippers

Built for maximum productivity, the BharatBenz 3528C provides unmatched performance and efficiency, making it well-suited for heavy-duty applications that demand reliability and power.

  • Gearbox Model & Type: G 131, 9F + 1R, Mechanical, Synchromesh Gears
  • Clutch Type: Single Dry Plate, Hydraulic Control
  • Clutch Diameter(mm): 430, 3.5 mm

  • Front Axle Model, Type: IF 7.0
  • Rear Axle Model, Type: RA1: IRT 390-11, RA2: IRT 390-11
  • Rear Axle Ratio*: 5.375

  • Wheel Base(mm)
    5175
  • Cabin:
    Day with Foldable Berth
  • Loading Span(ft)/Loadbody cpc (Cu.m):
    19 Cu.m Box
  • Overall Length(mm):
    8085/8385 (RMC)
  • Overall Width(mm):
    2490
  • Overall Height(mm):
    2983
  • Front Overhang(mm):
    1485
  • Rear Overhang(mm):
    750/1050 (RMC)
  • Minimum Ground Clearance(mm):
    290

  • Gross Vehicle Weight: 35,000 kgs (Nylon & Radial Tyre), 34,200 kgs (Mining Tyre)

  • Frame Section (DxWxT) (mm): 288 x 70 x 9
  • Front Suspension: Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
  • Rear Suspension: Bogie Suspension
  • Anti Roll Bar: Front: Standard; Rear: Standard (RA2)

  • Service Brake: Pneumatic Foot Operated, Dual Line with ABS
  • Parking Brake: Pneumatically Operated Hand Control Valve
  • Front Axle Brake: Ø 410 drum
  • Rear Axle Brake: Ø 410 drum
  • Tyre Size: Radial Tyres (11R20), Nylon Tyre (11x20), Mining Tyre (11 x 20 mine)

  • Steering Type: Hydraulic Power Assisted
  • Cabin: Day Cabin, Tiltable

  • Fuel Tank/Filling Capacity*: 215L/200L
  • Adblue Tank/Filling Capacity: 43L/36L
  • Voltage: 24V
  • Battery Capacity: 120Ah

  • Maximum Gradeability %: 45.2%
  • Maximum Geared Speed: 60 kmph
  • Turning Circle Diameter(TCD)*: 23.1m
icon
Model
OM 926
icon
Maximum Power, KW
210 Kw @ 2200 rpm
icon
Maximum Torque, Nm
11100 Nm @ 1200 - 1600 rpm
icon
No. of Cylinders, Displacement(CC)
6, 7200 cc
icon
Emission Compliance
Bharat Stage VI
