1923C
BharatBenz Tippers

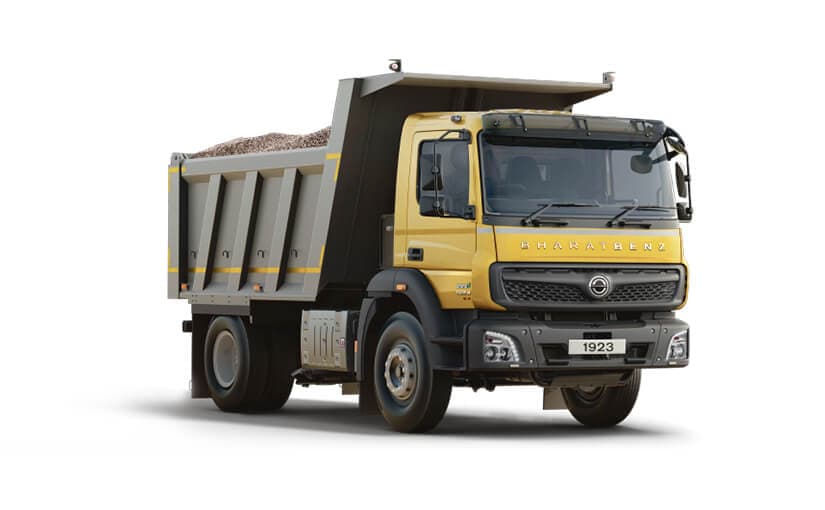

Designed for reliability and efficiency, the BharatBenz 1923C is built to handle various transportation tasks with ease, making it an ideal choice for medium-duty applications.
- Gearbox Model & Type: Improved G85, 6F+1R, Mechanical, Synchromesh Gears
- Clutch Type: Single Dry Plate, Hydraulic Control
- Clutch Diameter(mm): 395, 3.5 mm
- Front Axle Model, Type: IF 7.0
- Rear Axle Model, Type: RA: IR440-11
- Rear Axle Ratio*: 5.875
- Wheel Base(mm)3600
- Cabin:Day cabin with foldable berth
- Loading Span(ft)/Loadbody cpc (Cu.m):10.5 Cu.m Box
- Overall Length(mm):6185
- Overall Width(mm):2490
- Overall Height(mm):2960
- Front Overhang(mm):1485
- Rear Overhang(mm):1100
- Minimum Ground Clearance(mm):265
- Gross Vehicle Weight: 18,500 kgs (Nylon Tyre)
- Frame Section (DxWxT) (mm): 288 x 70 x 9
- Front Suspension: Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
- Rear Suspension: Semi-elliptical Leaf Spring
- Anti roll Bar: Front: Standard, Rear: Standard
- Service Brake: Pneumatic Foot Operated, Dual Line with ABS
- Parking Brake: Pneumatically Operated Hand Control Valve
- Front Axle Brake: Ø 410 drum
- Rear Axle Brake: Ø 410 drum
- Tyres: Nylon Tyre (11x20)
- Steering Type: Hydraulic Power Assisted
- Cabin: Day Cabin, Tiltable
- Fuel Tank/Filling Capacity*: 215L/200L
- Adblue Tank/Filling Capacity: 43L/36L
- Voltage: 24V
- Battery Capacity: 120Ah (Std)/130Ah (For HAP)
- Maximum Gradeability %: 38%
- Maximum Geared Speed: 60 kmph
- Turning Circle Diameter(TCD)*: 13.5m
Model
OM 926
Maximum Power, KW
180 Kw @ 2200 rpm
Maximum Torque, Nm
850 Nm @ 1200 - 1600 rpm
No. of Cylinders, Displacement(CC)
6, 7200 cc
