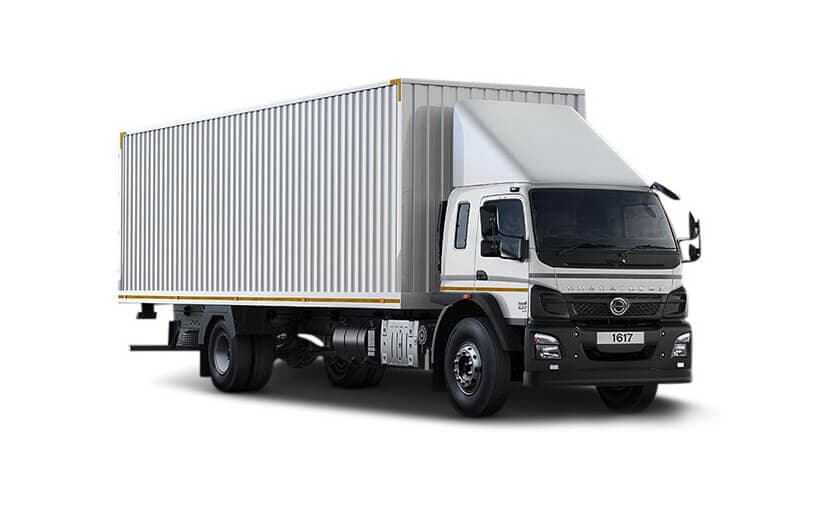

1617R
Medium Duty Truck (MDT)
With its strong performance and versatility, the BharatBenz 1617R is built to handle a wide range of transportation tasks. Whether it's urban deliveries or long-haul journeys, this truck delivers consistent performance and efficiency.
- Gearbox Model & Type: Improved G85, 6F+1R, Mechanical, Synchromesh Gears
- Clutch Type: Single Dry Plate, Hydraulic Control
- Clutch Diameter(mm): 362
- Front Axle Model, Type: IF 6.0
- Rear Axle Model, Type: MS 145
- Rear Axle Ratio*: [5.57 S, 6.17 HAP/Optional], [5.57 S, 6.17 HAP/Optional], [5.57 S, 6.17 HAP/Optional]
- Wheel Base(mm)510059006700
- Cabin:SleeperSleeperSleeper
- Loading Span(ft)/Loadbody cpc (Cu.m):20ft24ft31ft
- Overall Length(mm):8600981511995
- Overall Width(mm):233523352335
- Overall Height(mm)(CBC):260026002600
- Front Overhang(mm):133513351335
- Rear Overhang(mm):216525803960
- Minimum Ground Clearance(mm):270270270
- Gross Vehicle Weight: 16,200 Kgs (POL Tanker GVW will vary)
- Frame Section (DxWxT) (mm): 272 x 70 x 6
- Front Suspension: Multileaf Spring
- Rear Suspension: Multileaf Spring
- Anti Roll Bar: Front & Rear: Standard for hazardous goods pack(HGP), High centre of gravity pack(HCG) & 6700 WB /Optional (Other)
- Service Brake: Pneumatic, Foot Operated, Dual Line with ABS
- Parking Brake: Spring Actuated with Hand Brake Valve @ Cab
- Front Axle Brake: Ø 410 drum
- Rear Axle Brake: Ø 410 drum
- Tyre Size: Radial Tyre - 10.00 R 20
- Steering Type: Hydraulic Power Assisted
- Cabin: Sleeper Cabin with Berth, Tiltable
- Fuel Tank/Filling Capacity*: 215L/200L, 215L/200L, 215L/200L
- Adblue Tank/Filling Capacity: 43L/36L
- Voltage: 24V
- Battery Capacity: 75Ah/100AH (HAP)
- Maximum Gradeability %: 23.9% (RAR 5.57) & 26.7% (RAR 6.17)
- Maximum Geared Speed: 80 kmph
- Turning Circle Diameter(TCD)*: 17.3m, 19.3m, 22.6m
Model
4D34i
Maximum Power
125 Kw @ 2500 rpm
Maximum Torque
520 Nm @ 1500 rpm
No. of Cylinders, Displacement(CC)
4, 3900
