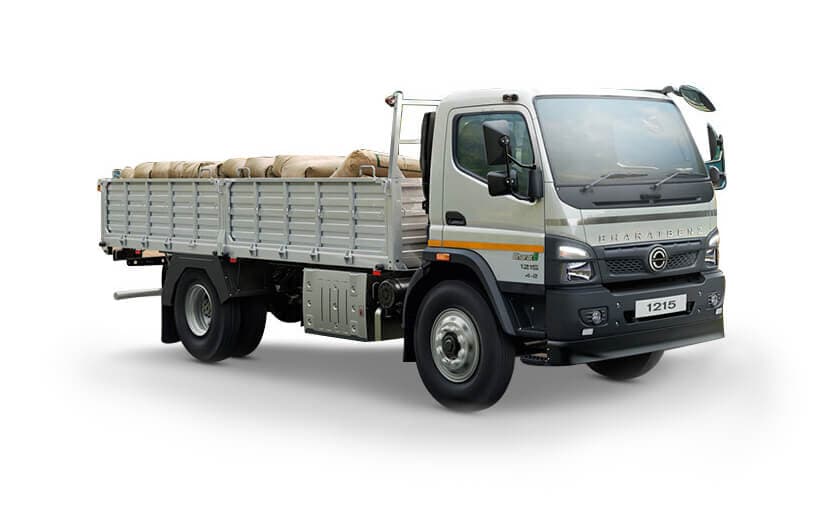

1215RE
Medium Duty Truck (MDT)
The BharatBenz 1215RE is engineered for reliable performance and efficiency. Designed to excel in various transport applications, it offers robustness and durability for your business needs.
- Gearbox Model & Type: Improved G85, 6F+1R, Mechanical, Synchromesh Gears
- Clutch Type: Single Dry Plate, Hydraulic Actuated
- Clutch Diameter(mm): 362
- Front Axle Model, Type: IF 4.5
- Rear Axle Model, Type: DANA S145
- Rear Axle Ratio*: [6.33 (S), 4.56 (O)], [6.33 (S), 4.56 (O)], [4.56 (S), 6.33 (O/HAP)], [4.56 (S), 6.33 (O/HAP)], [4.56 (S), 6.33 (O/HAP)]
- Wheel Base(mm)3360376042504800
- Cabin:DayDayDayDay
- Loading Span(ft)/Loadbody cpc (Cu.m):14.6ft17ft20ft22ft
- Overall Length(mm):6380707580308580
- Overall Width(mm):2135213521352135
- Overall Height(mm)(CBC):2500250025002500
- Front Overhang(mm):1275127512751275
- Rear Overhang(mm):1745204025052505
- Minimum Ground Clearance(mm):245245245245
- Gross Vehicle Weight: 11,900 kgs
- Frame Section (DxWxT) (mm): 228 x 80 x 6
- Front Suspension: Multileaf Spring
- Rear Suspension: Multileaf Spring
- Anti roll Bar: Optional (Front & Rear)
- Service Brake: Pneumatic, Foot Operated, Dual Line (Non-ABS)
- Parking Brake: Spring Actuated with Hand Brake Valve @ Cab
- Front Axle Brake: Ø 360 drum
- Rear Axle Brake: Ø 360 drum
- Tyre Size: Nylon Tyres (8.25x20)
- Steering Type: Hydraulic Power Assisted
- Cabin: Day Cabin
- Fuel Tank/Filling Capacity*: 171L/160L, 215L/200L, 215L/200L, 215L/200L, 215L/200L
- Adblue Tank/Filling Capacity: 43L/36L
- Voltage: 24V Electrical system
- Battery Capacity: 2 x 12 V, 75Ah/100AH (HAP)
- Maximum Gradeability %: 27.5% / 21.5%
- Maximum Geared Speed: 80 Kmph
- Turning Circle Diameter(TCD)*: 13.4m, 13.8m, 15.7m, 17.6m, 19.7m
Model
4D34i
Maximum Power
100 Kw @ 2500 rpm
Maximum Torque
420 Nm @ 1500-2000 rpm
No. of Cylinders, Displacement(CC)
4, 3900
