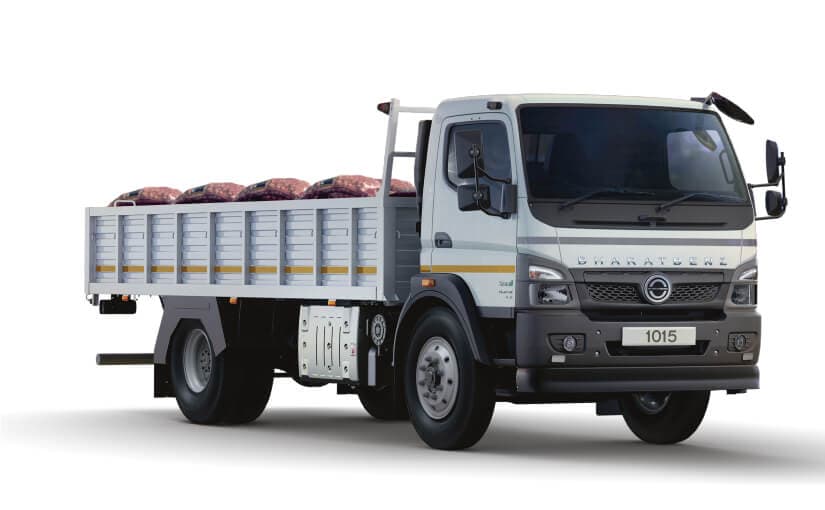

1015R
Medium Duty Truck (MDT)
Built for efficiency and performance, the BharatBenz 1015R tackles your payload challenges head-on. This powerful contender within the Medium Duty Truck (MDT) category is ideal for conquering demanding urban and regional transportation needs.
- Gearbox Model & Type: MO36, 6 Speed Mechanical, Synchromesh Gears
- Clutch Type: Single Dry Plate, Hydraulic Actuated
- Clutch Diameter(mm): 330
- Front Axle Model, Type: IF 3.6
- Rear Axle Model, Type: DANA S 130
- Rear Axle Ratio : 4.56 (S), 5.13 (Optional)
- Wheel Base(mm)3360376042504800
- Cabin:DayDayDayDay
- Loading Span(ft)/Loadbody cpc (Cu.m):14.6ft17ft20ft21ft
- Overall Length(mm):6380698579508195
- Overall Width(mm):2135213521352135
- Overall Height(mm)(CBC):2420242024202420
- Front Overhang(mm):1275127512751275
- Rear Overhang(mm):1745195024252120
- Minimum Ground Clearance(mm):205205205205
- Gross Vehicle Weight: 10,600 kg
- Frame Section (DxWxT) (mm): 228 mm x 80 mm x 6 mm
- Front Suspension: Multileaf Spring
- Rear Suspension: Multileaf Spring
- Anti roll Bar: Optional (front & rear)
- Service Brake: Pneumatic, Foot Operated, Dual Line
- Parking Brake: Spring Actuated with Hand Brake Valve @ Cab
- Front Axle Brake: Ø 325 drum
- Rear Axle Brake: Ø 325 drum
- Tyre Size: Nylon Tyres (8.25x16) Tubeless Tyres ( 235/75R17.5)
- Steering Type: Hydraulic Power assisted
- Cabin: Day cabin, Tiltable
- Fuel Tank/Filling Capacity*: 171L/160L, 215L/200L, 215L/200L, 215L/200L
- Adblue Tank/Filling Capacity: 43L/36L
- Voltage: 24 V
- Battery Capacity: 2 x 12 V, 75 Ah
- Maximum Gradeability %: 24.38% (4.56 RAR) & 27.76% (5.13 RAR)
- Maximum Geared Speed: 80 kmph
- Minimum Turning Circle Diameter: Turning Circle Diameter(TCD)*
Model
4D34i
Maximum Power
110 Kw @ 2500 rpm
Maximum Torque
460 Nm @ 1500 rpm
No. of Cylinders, Displacement(CC)
4, 3900
