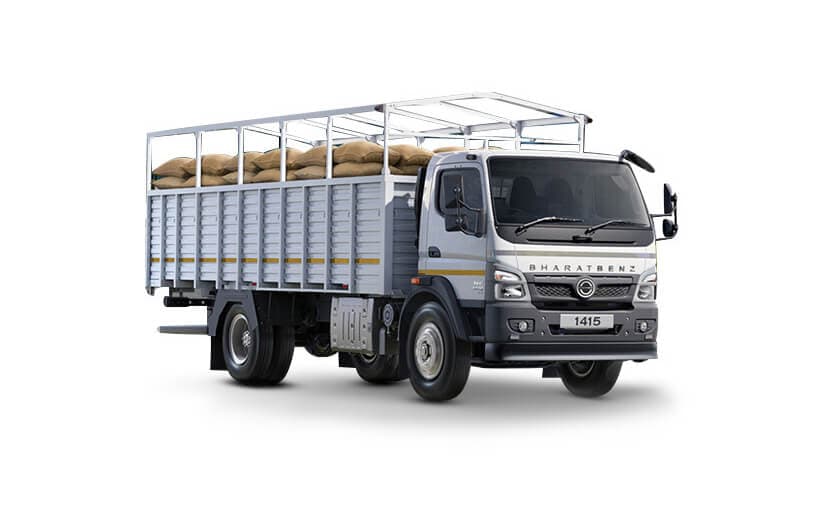

1415RE
Built to deliver exceptional performance and efficiency, the BharatBenz 1415RE is a versatile truck designed to meet the demands of modern logistics. It offers reliability and durability for long-haul and regional transportation.
- Gearbox Model & Type: Improved G85, 6F+1R, Mechanical, Synchromesh Gears
- Clutch Type: Single Dry Plate, Hydraulic Actuated
- Clutch Diameter(mm): 362
- Front Axle Model, Type: IF 5.0
- Rear Axle Model, Type: DANA S 145
- Rear Axle Ratio*: [6.33 S, 4.56 O],[6.33 S, 4.56 O],[4.56 S, 6.33 HAP/Optional],[4.56 S, 6.33 HAP & Optional],[4.56 S, 6.33 HAP & Optional]
- Wheel Base3360376042504800
- Cabin:DayDayDayDay
- Loadbody Length(Cu.m):14.6ft17ft20ft22ft
- Overall Length(mm):6380707580308580
- Overall Width(mm):2135213521352135
- Overall Height(mm):2480/24752480/24752480/24752480/2475
- Front Overhang(mm):1275127512751275
- Rear Overhang(mm):1745204025052505
- Minimum Ground Clearance:225/220225/220225/220225/220
- Gross Vehicle Weight: 14,050 Kgs/14,500 Kgs (Only tubeless tyre)
- Frame Section (DxWxT) (mm): 230 x 80 x 7
- Front Suspension: Multileaf Spring
- Rear Suspension: Multileaf Spring
- Anti Roll Bar: Optional (front & rear)
- Service Brake: Pneumatic, Foot Operated, Dual Line with ABS
- Parking Brake: Spring Actuated with Hand Brake Valve @ Cab
- Front Axle Brake: Ø 360 drum
- Rear Axle Brake: Ø 360 drum
- Tyre Size: Radial Tyres (8.25R20), Tubeless Tyres (255/70R22.5)
- Steering Type: Hydraulic Power Assisted
- Cabin: A/C Day Cabin, Tiltable
- Fuel Tank/Filling Capacity*: 171L/160L, 215L/200L, 215L/200L, 215L/200L, 215L/200L
- Adblue Tank/Filling Capacity: 43L/36L
- Voltage: 24V
- Battery Capacity: 75Ah/100AH (HAP)
- Maximum Gradeability %: With 4.56 RAR - 22.4% (14.5t), Remaining RAR - 32.2% (14.5t)
- Maximum Geared Speed: 70 kmph (for RT), 80 kmph (for TT)
- Turning Circle Diameter(TCD)*: 13.4m, 13.8m, 15.7m 17.6m, 19.7m
Model
4D34i
Maximum Power
110 Kw @ 2500 rpm
Maximum Torque
460 Nm @ 1500 rpm
No. of Cylinders, Displacement(CC)
4, 3900
