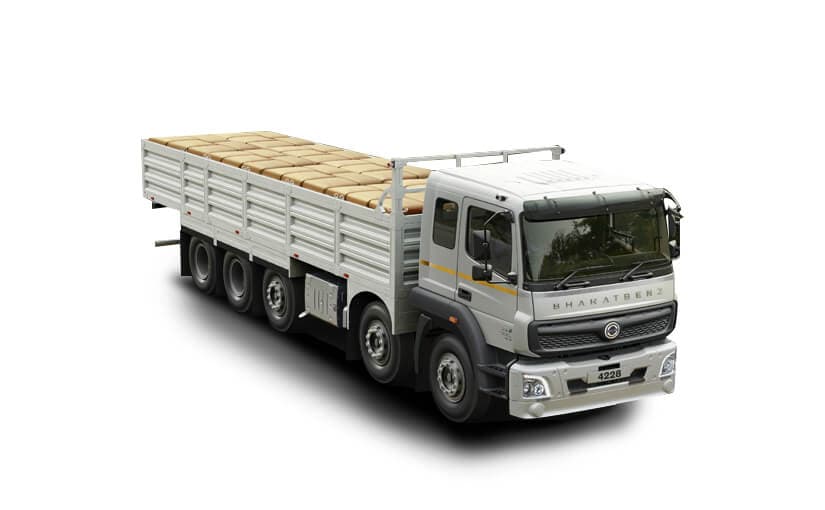

4228R
Heavy Duty Truck (HDT)
The BharatBenz 4228R is a top-performing heavy-duty truck built to deliver unmatched power and reliability. Designed for heavy haulage and long-distance transportation, it offers exceptional performance and durability for demanding operations.
- Gearbox Model & Type: G 131, 9F+1R, Mechanical, Synchromesh Gears
- Clutch Type: Single Dry Plate, Hydraulic Control
- Clutch Diameter(mm): 395, 4 mm
- Front Axle Model, Type: IF 7.0
- Rear Axle Model, Type: RA 1:IR440-11 & RA2: IT- 10
- Rear Axle Ratio*: 4.3
- Wheel Base(mm)6575
- Cabin:Sleeper
- Loading Span(ft)/Loadbody cpc (Cu.m):28ft
- Overall Length(mm):10992
- Overall Width(mm):2490
- Overall Height(mm):2939
- Front Overhang(mm):1485
- Rear Overhang(mm):2257
- Minimum Ground Clearance(mm):222
- Gross Vehicle Weight: 42,000 kgs (Tubeless & 295/90R20)/41,920 kgs (11R20)
- Frame Section (DxWxT) (mm): 286 x 70 x 8
- Front Suspension: Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
- Rear Suspension: Balancer Type Semi-Elliptical Leaf Spring
- Anti Roll Bar: Standard on Front Axle
- Service Brake: Pneumatic, Foot Operated, Dual Line with ABS
- Parking Brake: Pneumatically Operated Hand Control Valve
- Front Axle Brake: Ø 410 drum
- Rear Axle Brake: Ø 410 drum
- Tyre Size: Radial Tyres (Rib & Lug Pattern - 11R20 or 295/90R20), Tubeless Tyres (All Wheel Pattern - 295/80R22.5), Tubeless Tyres (Rib & Lug Pattern - 295/80R22.5)
- Steering Type: Hydraulic Power Assisted
- Cabin: Sleeper Cabin with Berth, Tiltable
- Fuel Tank/Filling Capacity*: Standard - 330L/310L
- Adblue Tank/Filling Capacity: 60L/ 51L
- Voltage: 24V
- Battery Capacity: 120Ah
- Maximum Gradeability %: 29%
- Maximum Geared Speed: 80 kmph(Standard)
- Turning Circle Diameter(TCD)*: 24m
Model
DE175BS4
Maximum Power
210 Kw @ 2200 rpm
Maximum Torque
1100 Nm @ 1200 - 1600 rpm
No. of Cylinders, Displacement(CC)
6, 7200 cc
