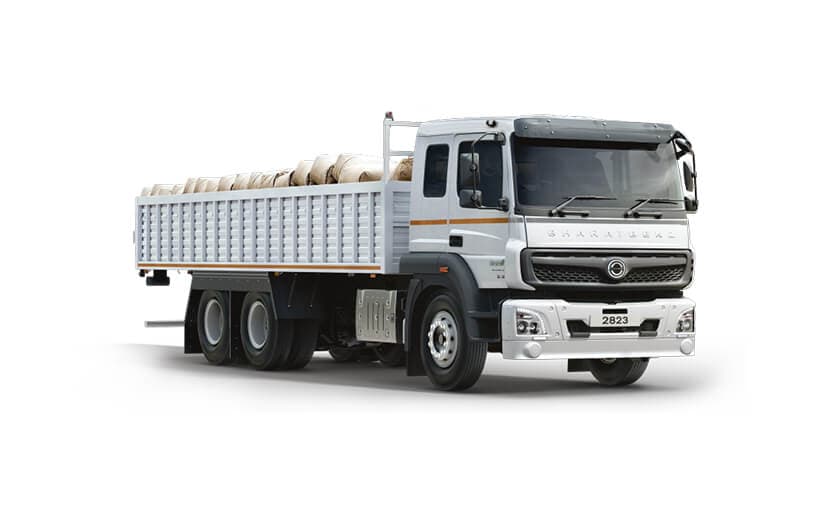

2823R
Heavy Duty Truck (HDT)
The BharatBenz 2823R is a powerful and reliable heavy-duty truck designed to tackle demanding transportation tasks with ease. With its robust build and efficient performance, it's an ideal choice for long-haul journeys and heavy payloads.
- Gearbox Model & Type: Improved G85, 6F+1R, Mechanical, Synchromesh Gears
- Clutch Type: Single Dry Plate, Hydraulic Control
- Clutch Diameter(mm): 395, 3.5 mm
- Front Axle Model, Type: IF 7.0
- Rear Axle Model, Type: RA 1:IR440-11 & RA2: IT- 10
- Rear Axle Ratio*: 5.875
- Wheel Base(mm)517557756375
- Cabin:SleeperSleeperSleeperCompact Sleeper
- Loadbody Length(Cu.m):24 ft28 ft31 ft32 ft
- Overall Length(mm):9892110921199211992
- Overall Width(mm):2490249024902490
- Overall Height(mm):2849294228492849
- Front Overhang(mm):1485148514851485
- Rear Overhang(mm):2557315734573457
- Minimum Ground Clearance(mm):226226226226
- Gross Vehicle Weight: 28,000 kgs (Tubeless Tyres)/27,960 Kgs (Radial Tyres)
- Frame Section (DxWxT) (mm): 284 x 70 x 7
- Front Suspension: Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
- Rear Suspension: Balancer Type Semi-Elliptical Leaf Spring
- Anti Roll Bar: Front Standard Rear applicable for Hazards Goods Pack (HGP) & High Centre of Gravity (HCG), Front: Standard Rear applicable for High Centre of Gravity (HCG), Front: Standard Rear applicable for High Centre of Gravity (HCG), Front: Standard Rear applicable for High Centre of Gravity (HCG)
- Service Brake: Pneumatic, Foot Operated, Dual Line with ABS
- Parking Brake: Pneumatically Operated Hand Control Valve
- Front Axle Brake: Ø 410 drum
- Rear Axle Brake: Ø 410 drum
- Tyre Size: Radial Tyres (Rib & Lug Pattern - 11R20 or 295/90R20), Tubeless Tyres (All Wheel Pattern - 295/80R22.5), Tubeless Tyres (Rib & Lug Pattern - 295/80R22.5)
- Steering Type: Hydraulic Power Assisted
- Cabin: Sleeper Cabin with Berth, Tiltable
- Fuel Tank/Filling Capacity*: 380/355L && 200L/185L(POL tanker)
- Adblue Tank/Filling Capacity: 60L/51L
- Voltage: 24V
- Battery Capacity: 120Ah (Std)/130Ah (For HAP)
- Maximum Gradeability %: 23.50%
- Maximum Geared Speed: 80 kmph (Std)/ 60kmph (POL Tanker)
- Turning Circle Diameter(TCD)*: 18.7m, 21.6m, 22.5m, 22.5m
Model
OM926
Maximum Power
180 Kw @ 2200 rpm
Maximum Torque
850 Nm @ 1200 - 1600 rpm
No. of Cylinders, Displacement(CC)
6, 7200 cc
