3523R

Heavy Duty Truck (HDT)

With its combination of strength and versatility, the BharatBenz 3523R is engineered to excel in heavy-duty transportation applications. Its rugged design and superior performance make it well-suited for challenging road conditions and heavy loads.

  • Gearbox Model & Type: Improved G85, 6F+1R, Mechanical, Synchromesh Gears
  • Clutch Type: Single Dry Plate, Hydraulic Control
  • Clutch Diameter(mm): 395, 4 mm

  • Front Axle Model, Type: IF 7.0
  • Rear Axle Model, Type: RA1:IR440-11 & RA2: IT- 10
  • Rear Axle Ratio*: 5.875

  • Wheel Base(mm)
    5775
    6375
    6375
  • Cabin:
    Sleeper
    Sleeper
    Compact Sleeper
  • Loading Span(ft)/Loadbody cpc (Cu.m):
    26 ft
    28 ft
    32 ft
  • Overall Length(mm):
    10492
    11092
    11992
  • Overall Width(mm):
    2490
    2490
    2490
  • Overall Height(mm):
    2960
    2960
    2960
  • Front Overhang(mm):
    1485
    1485
    1485
  • Rear Overhang(mm):
    2557
    2557
    3457
  • Minimum Ground Clearance:
    233
    233
    233

  • Gross Vehicle Weight: 35,000 kgs (Tubeless tyres)/34,920 kgs (Radial Tyres)

  • Frame Section (DxWxT) (mm): 286 x 70 x 8
  • Front Suspension: Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
  • Rear Suspension: Balancer Type Semi-Elliptical Leaf Spring
  • Anti Roll Bar: Front: Standard Rear applicable for: High Centre of Gravity (HCG), Front: Standard Rear applicable for: Hazards Goods Pack (HGP) & High Centre of Gravity (HCG), Front: Standard Rear applicable for: High Centre of Gravity (HCG)

  • Service Brake: Pneumatic, Foot Operated, Dual Line with ABS
  • Parking Brake: Pneumatically Operated Hand Control Valve
  • Front Axle Brake: Ø 410 drum
  • Rear Axle Brake: Ø 410 drum
  • Tyre Size: Radial Tyres (Rib & Lug Pattern - 11R20 or 295/90R20), Tubeless Tyres (All Wheel Pattern - 295/80R22.5), Tubeless Tyres (Rib & Lug Pattern - 295/80R22.5)

  • Steering Type: Hydraulic power assisted
  • Cabin: Sleeper Cabin with Berth, Tiltable

  • Fuel Tank/Filling Capacity*: Standard - 380L/355L ; HGP tanker - 200L/185L
  • Adblue Tank/Filling Capacity: 60L/51L
  • Voltage: 24V
  • Battery Capacity: 120Ah (Std)/130Ah (For HAP)

  • Maximum Gradeability %: 18.5%
  • Maximum Geared Speed: 80 kmph (std)/60 kmph (POL Tanker)
  • Turning Circle Diameter(TCD)*: 21.6m, 23.7m, 23.7m
icon
Model
OM926
icon
Maximum Power
180 Kw @ 2200 rpm
icon
Maximum Torque
850 Nm @ 1200 - 1600 rpm
icon
No. of Cylinders, Displacement(CC)
6, 7200 cc
icon
Emission Compliance
Bharat Stage VI
Similar Heavy Duty Truck (HDTs)
i.model

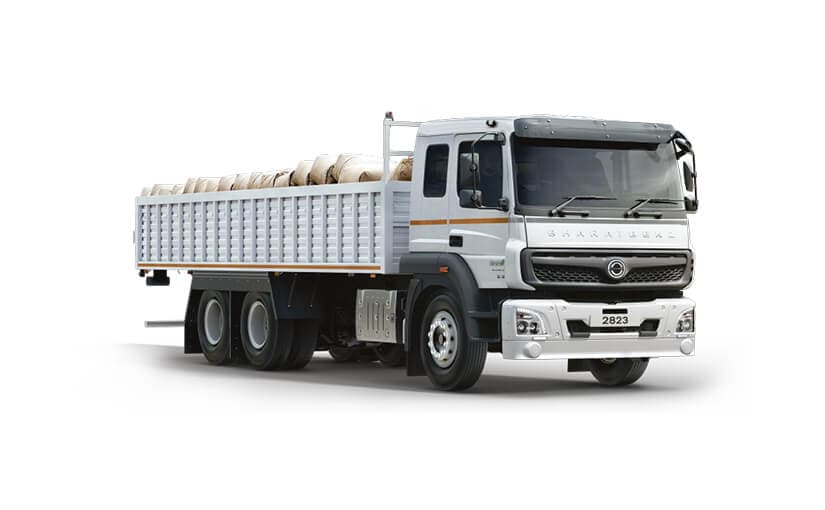

2823R

i.model

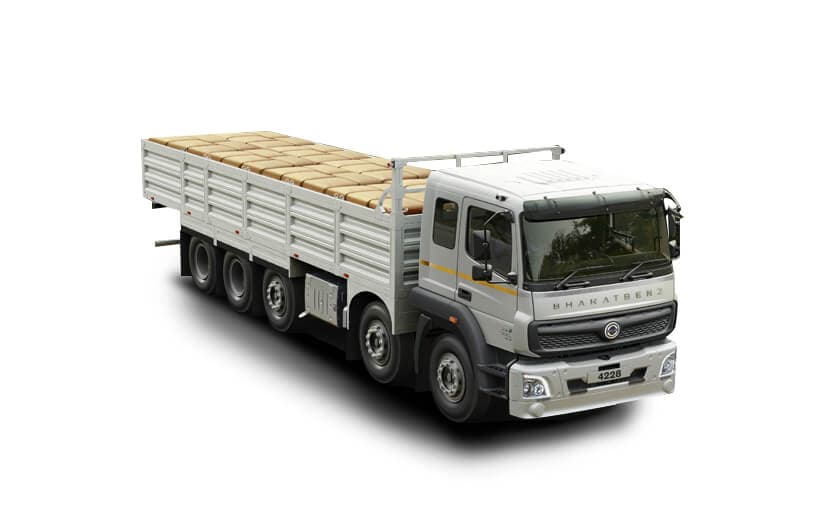

4228R
