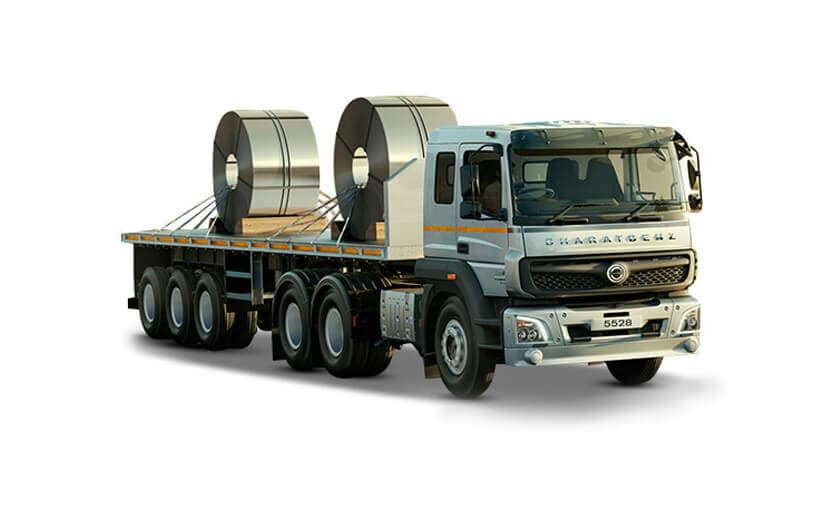

5528TT
BharatBenz Tractors
With its powerful engine and sturdy construction, the BharatBenz 5528TT is built to excel in challenging transport conditions, providing reliable solutions for heavy-duty applications.
- Gearbox Model & Type: G 131, 9F + 1R, Mechanical, Synchromesh Gears
- Clutch Type: Single Dry Plate, Hydraulic Control
- Clutch Diameter(mm): 430, 4.5 mm High Wear
- Front Axle Model, Type: IF 7.0
- Rear Axle Model, Type: RA1: IRT 390-11, RA2: IRT 390-11
- Rear Axle Ratio*: 4.778
- Wheel Base(mm)3975
- Cabin:Sleeper
- Overall Length(mm):6935
- Overall Width(mm):2490
- Overall Height(mm):2910
- Front Overhang(mm):1485
- Rear Overhang(mm):800
- Minimum Ground Clearance(mm):255
- Gross Vehicle Weight: (with Suitable Three Axle Trailer) Radial Tyres - 54960 kgs Tubeless Tyres - 55000 kgs
- Frame Section (DxWxT) (mm): 288 x 70 x 9
- Front Suspension: Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
- Rear Suspension: Bogie Suspension
- Anti Roll Bar: Standard on Front Axle
- Service Brake: Pneumatic, Foot Operated, Dual Line with ABS
- Parking Brake: Pneumatically Operated Hand Control Valve
- Front Axle Brake: Ø 410 drum
- Rear Axle Brake: Ø 410 drum
- Tyre Size: Radial Tyres 11.00 R20 (or) 295/90R20 Tubeless Tyres (295/80R22.5)
- Steering Type: Hydraulic Power Assisted
- Cabin: Sleeper Cabin with Berth,Tiltable
- Fuel Tank/Filling Capacity*: 455L/430 L
- Adblue Tank/Filling Capacity: 60L/51L
- Voltage: 24V
- Battery Capacity: 120Ah
- Maximum Gradeability %: 23.60%
- Maximum Geared Speed: 80 kmph
- Turning Circle Diameter(TCD)*: 16.7m
Model
OM 926
Maximum Power, KW
180 Kw @ 2200 rpm
Maximum Torque, Nm
850 Nm @ 1200 - 1600 rpm
No. of Cylinders, Displacement(CC)
6, 7200 cc
