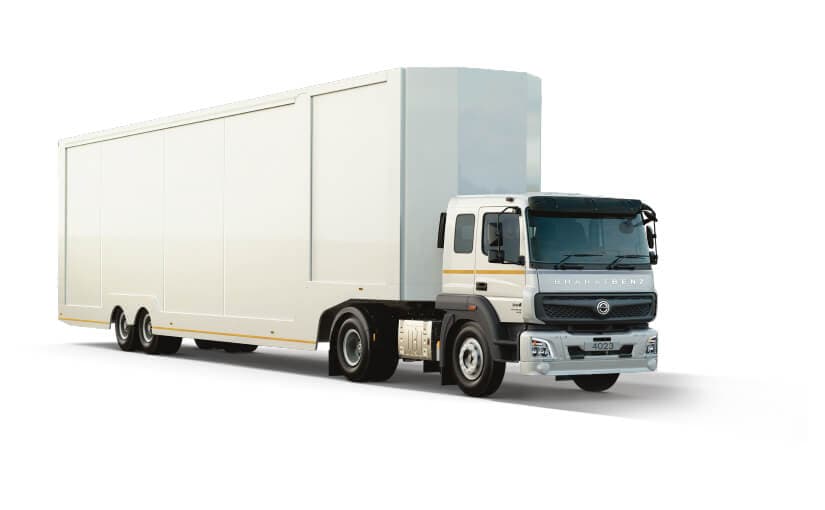

4023TT
BharatBenz Tractors
The BharatBenz 4023TT is designed to tackle tough terrains and demanding transport tasks with ease, offering robust performance and reliability for heavy-duty applications.
- Gearbox Model & Type: G 131, 9F + 1R, Mechanical, Synchromesh Gears
- Clutch Type: Single Dry Plate, Hydraulic Control
- Clutch Diameter(mm): 395, 3.9 mm
- Front Axle Model, Type: IF 7.0
- Rear Axle Model, Type: RA: IR440-11
- Rear Axle Ratio*: 4.3/4.778
- Wheel Base(mm)3300
- Cabin:Sleeper
- Overall Length(mm):5780
- Overall Width(mm):2490
- Overall Height(mm):2960
- Front Overhang(mm):1485
- Rear Overhang(mm):995
- Minimum Ground Clearance(mm):237
- Gross Vehicle Weight: (With suitable Two Axle Trailer) 37.2t GCW/39.5t GCW
- Frame Section (DxWxT) (mm): 288 x 70 x 9
- Front Suspension: Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
- Rear Suspension: Semi-Elliptical Leaf Spring
- Anti Roll Bar: Standard on Front Axle
- Service Brake: Pneumatic, Foot Operated, Dual Line with ABS
- Parking Brake: Pneumatically Operated Hand Control Valve
- Front Axle Brake: Ø 410 drum
- Rear Axle Brake: Ø 410 drum
- Tyre Size: Radial Tyres 10.00 R20 for 37.2t GCW, 11R20 (or) 295/90R20 for 39.5t GCW Tubeless-tyres (295/80R22.5)
- Steering Type: Hydraulic Power Assisted
- Cabin: Sleeper Cabin with Berth, Tiltable
- Fuel Tank/Filling Capacity*: 455 L/ 430 L
- Adblue Tank/Filling Capacity: 60L/51L
- Voltage: 24V
- Battery Capacity: 120Ah
- Maximum Gradeability %: 26.2% (4.778 RAR)/ 25.8% (4.3 RAR)
- Maximum Geared Speed: 80 kmph
- Turning Circle Diameter(TCD)*: 12.8m
Model
OM 926
Maximum Power
210 Kw @ 2200 rpm
Maximum Torque
1100 Nm @ 1200 - 1600 rpm
No. of Cylinders, Displacement
6, 7200 cc
