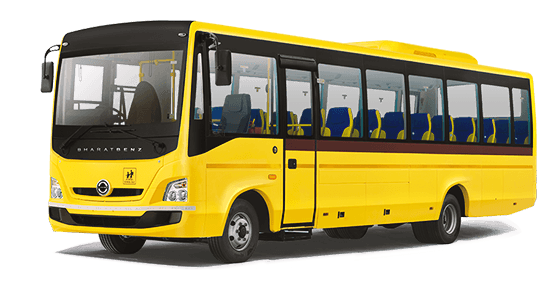

BharatBenz School Bus

The interiors of the bus are made of fire-retardant plastic and fabric that helps in effective prevention of fire. As the vinyl flooring is furnished with an anti-skid top layer, children can walk through safely and easily. Furthermore, the emergency exit is strategically located to allow quick evacuations.

Specifications

1014 School Bus
1017 School Bus
Engine:
4D34i
4D34i
General characteristics:
4 Cylinder, Vertical in-line BSVI, inter-cooled, turbo-charged
4 Cylinder, Vertical in-line BSVI, inter-cooled, turbo-charged
Engine Capacity:
3907cc
3907cc
Engine Max output:
147HP (110kW) @ 2500rpm
170HP (125kW) @ 2500rpm
Engine Max torque:
460Nm @ 1500rpm
520Nm @ 1500rpm
Gearbox Model:
M036, Synchromesh
MO36S6 (6F + 1R)
No. of Gears:
6 forward with overdrive + 1 reverse
6 forward with overdrive + 1 reverse
Clutch Type:
Organic, Single dry plate, 325mm
Organic, Single dry plate, 325mm
Brake Type:
Dual Circuit, Full Air, S-Cam type drum
Dual Circuit, Full Air, S-Cam type drum
Auxiliary Brake:
Exhaust brake
Exhaust brake
Electonic Brake:
Anti-lock Braking System (ABS)
Anti-lock Braking System (ABS)
Front Axle:
Heavy-duty reverse elliot 'I' beam
Heavy-duty reverse elliot 'I' beam
Rear Axle:
Fully floating type
Fully floating type
Suspension Type:
Parabolic suspension at front and rear
Parabolic suspension at front and rear
Anti Roll Bars:
Double acting telescopic shock absorber and anti roll bars at front and rear
Double acting telescopic shock absorber and anti roll bars at front and rear
Steering Type:
Power steering, adjustable and tiltable
Power steering, adjustable and tiltable
Tyre Type:
235/75 R 17.5 tubeless tyres
235/75 R 17.5 tubeless tyres
System output:
24V
24V
Battery:
2x12V, 120Ah
2x12V, 120Ah
Fuel Tank Capacity:
160L
160L
Adblue Tank Capacity:
43L
43L
Seats:
Push back type
Push back type
Seat Layout/capacity:
2x2 layout with 35+1 seats
2x2 layout with 35+1 seats
Floor:
Marine grade plywood, Anti-skid vinyl top layer
Marine grade plywood, Anti-skid vinyl top layer
Passenger door:
In-swing, Automatic
In-swing, Manual
Windows:
Sliding glass
Fixed glass
Emergency exit:
Door at rear RHS, rear breakable glass, all windows breakable
Door at rear RHS, rear breakable glass, all windows breakable
Emergency kit:
Fire extinguisher (5kg x2), First-Aid kit
Fire extinguisher (5kg x2), First-Aid kit
Hatrack:
Standard
Modular hatrack with individual AC vents and service sets
Lights:
4+1 standard LED lights with integrated night lamp distributed through saloon area
4+1 standard LED lights with integrated night lamp distributed through saloon area
Speakers:
Provision made with internal wiring, 2 front and 2 rear
Provision made with internal wiring, 2 front and 2 rear
Safety features:
Seat belts, provision for CCTV, GPS, RFID and navigator, light at entry area , emergency alarm
Seat belts, provision for CCTV, GPS, RFID and navigator, light at entry area , emergency alarm
Fitments:
Notice Board
Notice Board
Optional fitments:
Music Player, Speakers, destination boards, tubular hatrack with free-flow AC, Option of 39 HHR seater (2x2) and 26 seater (2x1)
Music Player, Speakers, destination boards, tubular hatrack with free-flow AC, Option of 39 HHR seater (2x2) and 26 seater (2x1)
AC:
No
Yes

Features of BharatBenz School Bus

Sturdy Framework

Our buses feature a meticulously built framework with ABS, anti-roll bars, anti-skid silicon vinyl flooring, fire retardant interiors, broad emergency exit doors, a wider frame, tubeless radial tires, wider brake liners, fire extinguishers, and a first-aid kit as standard, ensuring maximum passenger safety.

Robust Body

The robust body construction includes ABS, anti-roll bars, anti-skid flooring, fire retardant interiors, wide emergency exits, a broad frame, tubeless radial tires, wider brake liners, fire extinguishers, and a first-aid kit as standard, providing unmatched safety.

Braking System

Our advanced braking system features a high-grade tubular structure, a lower center of gravity, and a rollover angle of 44 degrees. The AIS063 compliant BharatBenz buses come with factory-fitted regulatory devices such as ITS, RPAS, and FDAS, ensuring comprehensive safety.

Comfortable Seats

Designed for comfort, our buses have a wider body that accommodates spacious seats and gangways. The ergonomically crafted seats provide a cozy and comfortable ride, ensuring a pleasant journey for every passenger.

Suspension

The parabolic suspension system, combined with powerful air conditioning and vibrant interiors, ensures top-class comfort. The tiltable and adjustable steering system and triple cone synchronizer gearbox enhance driving ease, while the flat torque engine reduces gear shifting.

Better Handling

With a wide chassis frame and tubeless radial tires, our buses offer enhanced stability. The front and rear anti-roll bars improve cornering and handling, ensuring a smooth and controlled ride.

Longer Service Intervals

Our buses are designed for reliability with optimized service intervals for the engine, transmission, axle, and a corrosion-preventive body, ensuring low maintenance and maximum uptime.

Clutch Lining

The clutch lining, made from special organic materials, improves durability and longevity, ensuring the clutch's performance remains consistent over time, contributing to the vehicle's reliability.
