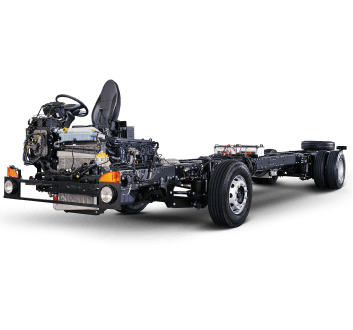

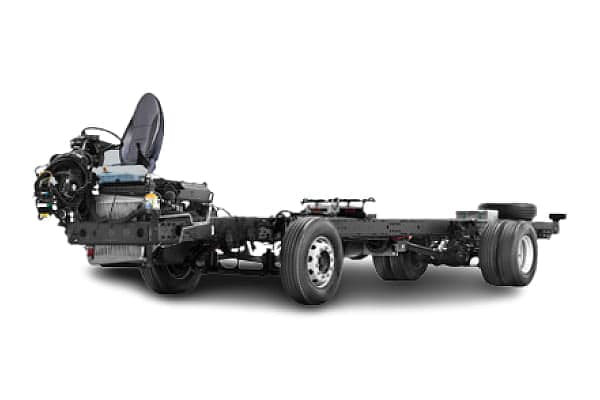

BharatBenz h2 10T Chassis

Introducing the latest innovation from Dhingra Trucking in collaboration with BharatBenz - the 10-tonne chassis, designed to redefine luxury travel. Meet the new Glider X, combining BharatBenz's reliable chassis with the renowned craftsmanship of the country’s largest bodybuilder, MG Group. Engineered with precision and attention to detail, the Glider X sets new standards in passenger comfort and convenience. Whether it's a short commute or a long-distance journey, this coach guarantees a luxurious ride for both passengers and driver alike.

Specifications

  • 10T/9.8-metre Chassis
  • Engine:
    4D34i
  • Power:
    170HP (125kW) @ 2500rpm
  • Torque:
    520Nm @ 1500rpm
  • Capacity/ Displacement:
    3907cc
  • Gearbox:
    M036, Synchromesh
  • Clutch Type:
    Organic, Single dry plate, Diameter 325mm
  • Brakes:
    Dual Circuit, Full Air, S-Cam type drum
  • Auxiliary Brake:
    Exhaust brake
  • Electonic Brake:
    Anti-lock Braking System (ABS)
  • Front Axle:
    Heavy-duty reverse elliot 'I' beam
  • Rear Axle:
    Fully floating type
  • Suspension Type:
    Parabolic Suspension at front and rear
  • Anti roll bar & shock absorber:
    Double acting telescopic shock absorber and anti roll bars at front and rear
  • Steering Type:
    Power steering, adjustable and tiltable
  • Tyre Type:
    235/75 R 17.5 tubeless tyres
  • System output:
    24V
  • Battery:
    2x12V, 120Ah
  • Fuel Tank Capacity:
    160L
  • Adblue Tank Capacity:
    43L
  • Alternator:
    1 x 28V/120A, (for AC additional 1 x 28V/80A)
  • Wheel base:
    5800mm
  • Overall Length:
    8566mm
  • Overall Height:
    2036mm
  • Overall Width:
    2199mm
  • Front Overhang:
    1193mm
  • Rear Overhang:
    2000mm
  • Max Permissible legal GVW (KGS):
    10600Kg

Features of BharatBenz h2 10T Chassis

features-image

Sturdy Framework

Our buses feature a meticulously built framework with ABS, anti-roll bars, anti-skid silicon vinyl flooring, fire retardant interiors, broad emergency exit doors, a wider frame, tubeless radial tires, wider brake liners, fire extinguishers, and a first-aid kit as standard, ensuring maximum passenger safety.

features-image

Robust Body

The robust body construction includes ABS, anti-roll bars, anti-skid flooring, fire retardant interiors, wide emergency exits, a broad frame, tubeless radial tires, wider brake liners, fire extinguishers, and a first-aid kit as standard, providing unmatched safety.

features-image

Braking System

Our advanced braking system features a high-grade tubular structure, a lower center of gravity, and a rollover angle of 44 degrees. The AIS063 compliant BharatBenz buses come with factory-fitted regulatory devices such as ITS, RPAS, and FDAS, ensuring comprehensive safety.

features-image

Comfortable Seats

Designed for comfort, our buses have a wider body that accommodates spacious seats and gangways. The ergonomically crafted seats provide a cozy and comfortable ride, ensuring a pleasant journey for every passenger.

features-image

Suspension

The parabolic suspension system, combined with powerful air conditioning and vibrant interiors, ensures top-class comfort. The tiltable and adjustable steering system and triple cone synchronizer gearbox enhance driving ease, while the flat torque engine reduces gear shifting.

features-image

Better Handling

With a wide chassis frame and tubeless radial tires, our buses offer enhanced stability. The front and rear anti-roll bars improve cornering and handling, ensuring a smooth and controlled ride.

features-image

Longer Service Intervals

Our buses are designed for reliability with optimized service intervals for the engine, transmission, axle, and a corrosion-preventive body, ensuring low maintenance and maximum uptime.

features-image

Clutch Lining

The clutch lining, made from special organic materials, improves durability and longevity, ensuring the clutch's performance remains consistent over time, contributing to the vehicle's reliability.
